JET

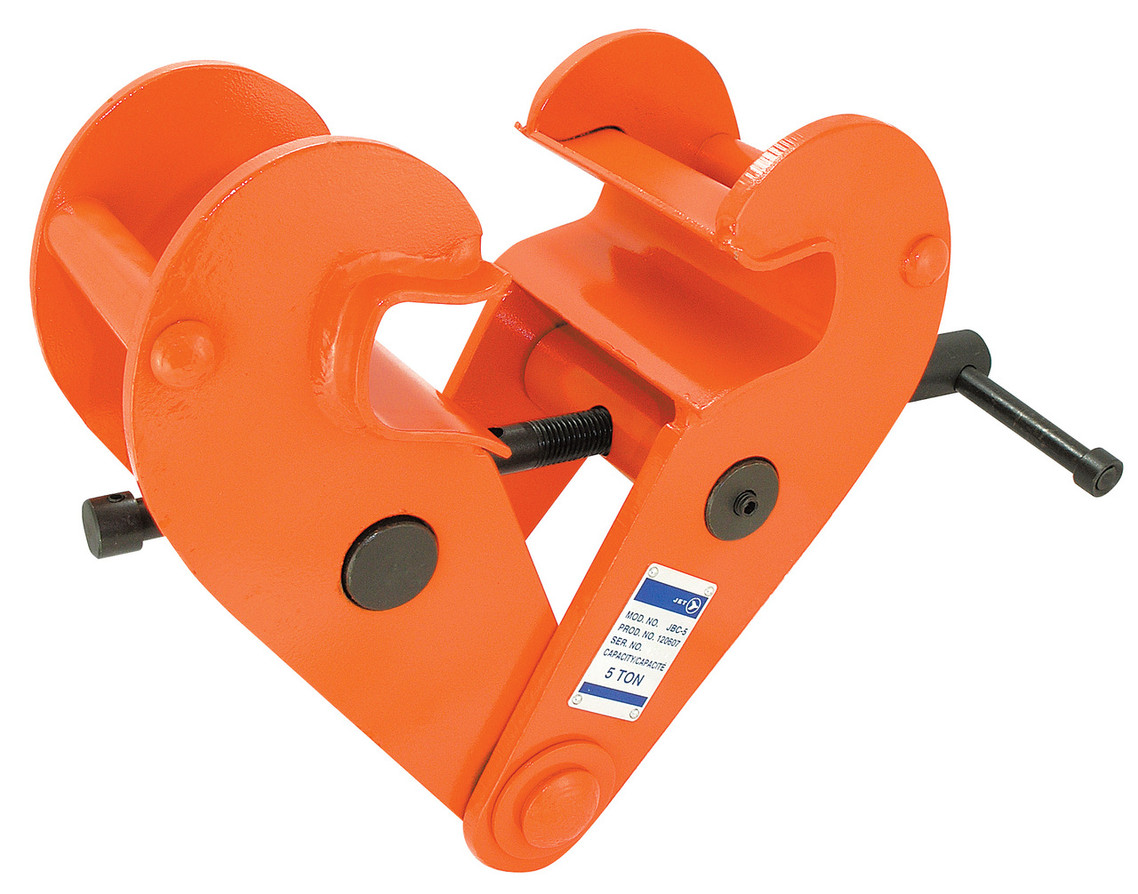

JET JBC-5 5 Ton Beam Clamp With Locking Screw - Heavy Duty

(No reviews yet) Write a Review
SKU:
SUW-120607
UPC:
059629801895
  • JBC-5 5 Ton Beam Clamp With Locking Screw - Heavy Duty
  • JBC-5 5 Ton Beam Clamp With Locking Screw - Heavy Duty
$428.05

Description

  • Can be used for suspending loads or inverted as a clamp for vertical lifting of flanged beams
  • Jaw design reduces stress on beam flanges by distributing load away from edges
  • Equal width jaws assure best possible stability
  • Threaded handle allows for ease of installation and portability
  • Special locking screw mechanism ensures the unit stays tight, increasing safety
  • Can be adjusted to fit securely on a wide range of flange and beam widths
  • Built-in suspension bar provides ultra low headroom
  • Meets ANSI B30.11 and B30.20 specifications (Certificate included)
  • Tested to 150% of rated capacity
  • Maximum angle from vertical 15° when used for lifting beams INSERT HAND DRAWN DIAGRAM
  • heavy duty icon
Shipping Weight 38 lb (17.3 kg)
Product Weight (lb/kg) 35.728 lb (16.24 kg)
Capacity (Tons) 5
Rated Capacity (lbs) 10,000
Rated Flange Width 3.5" — 12"
Maximum A 12.60"
Minimum B 10.43"
Maximum B 19.09"
C 5.51"
D .39"
E 10.63"
Maximum F 6.50"
Minimum F 4.92"
G 2.05"
H 1.10"

icon
