Description

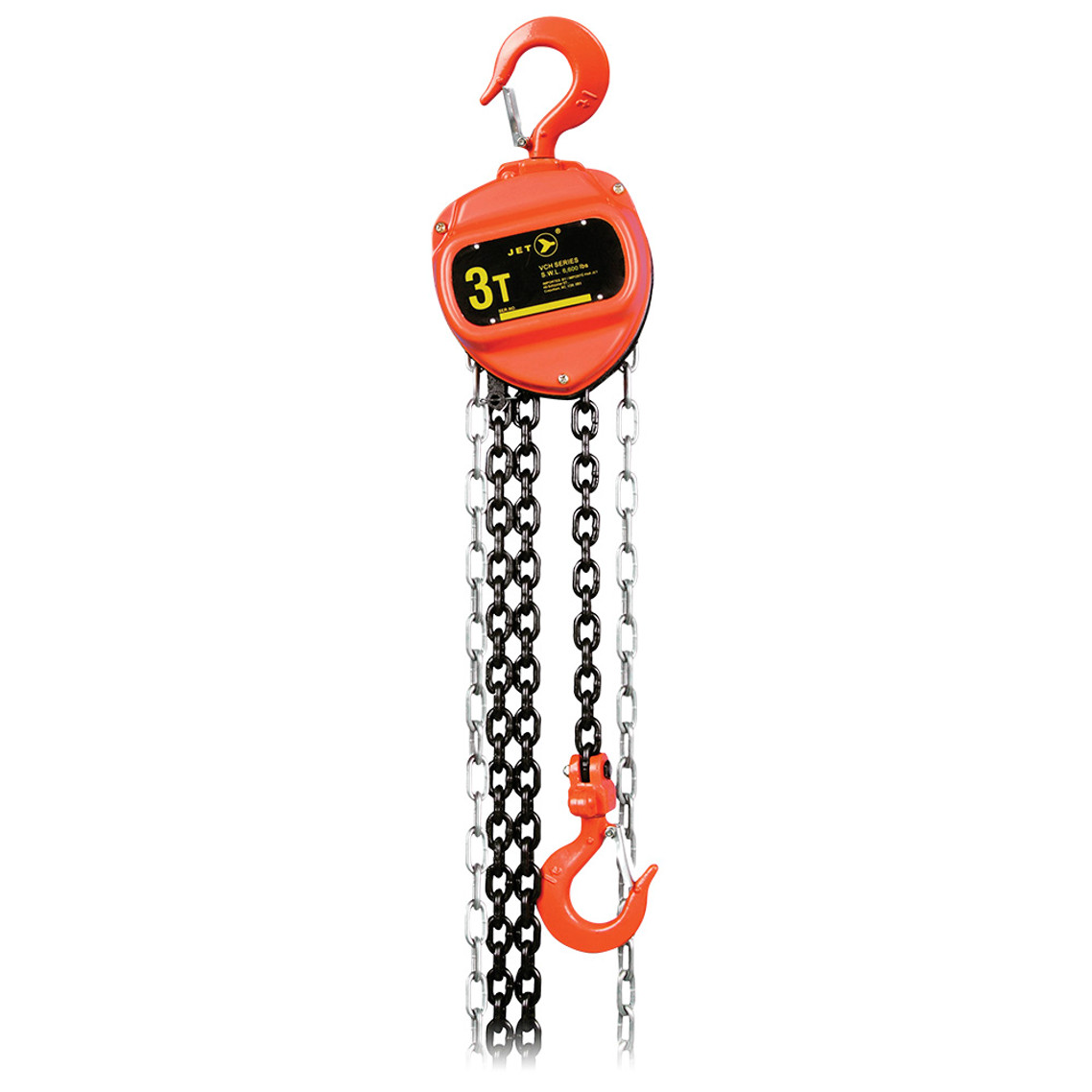

These JET brand chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.
- Professional grade triple spur gear is lightweight and portable
- Dual pawl Weston style brake provides safe and reliable operation
- Made with premium grade non-asbestos brake discs for long service life
- Made with grade 80 heat-treated alloy steel load chain
- Load tested to 150% of rated capacity and includes certificate
- Top and bottom safety hooks are engineered to bend lowly in case of accidental overload
- Made with a hi-viz safety orange finish
- MPN: VCH-3010
Shipping Weight | 54.7 lb (24.8 kg) |
---|---|
Product Weight (lb/kg) | 52.9 lb (24.1 kg) |
Rated Lifting Capacity (Tons) | 3 |
Rated Lifting Capacity (lbs) | 6,600 |
Standard Lift | 10' |
Head Room | 20-15/32" |
Number of Falls | 2 |
Load Chain Diameter | 8.0 mm |
Force Req. to Lift Capacity (lbs) | 88 |
Length of Hand Chain Pulled to Lift Load 1 ft | 53' |
A | 7-13/64" |
B | 6-7/32" |
C | 2-29/64" |
G | 1-23/32" |
H | 20-15/32" |
